SpringBoot mybatis 实现多级树形菜单的示例代码

iview-admin中提供了 v-org-tree 这么一个vue组件可以实现树形菜单，下面小编来提供一下在element-ui中的使用教程（项目见：https://github.com/lison16/v-org-tree）

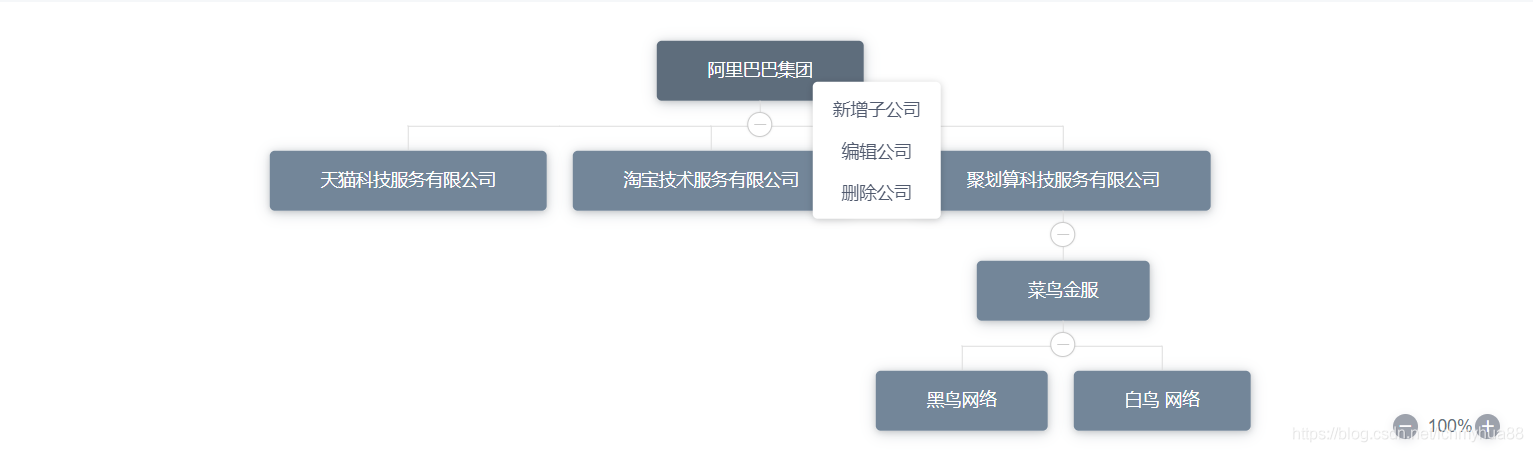

小编集成了el-dropdown下拉菜单（鼠标左击显示菜单），和右击自定义菜单，两种方式，效果图如下：

（1）安装依赖

npm install clipboardnpm install v-click-outside-xnpm install v-org-tree

（2）引入组件

在main.js文件中引入

import TreeTable from ’tree-table-vue’import VOrgTree from ’v-org-tree’

（3）引入部分js工具方法

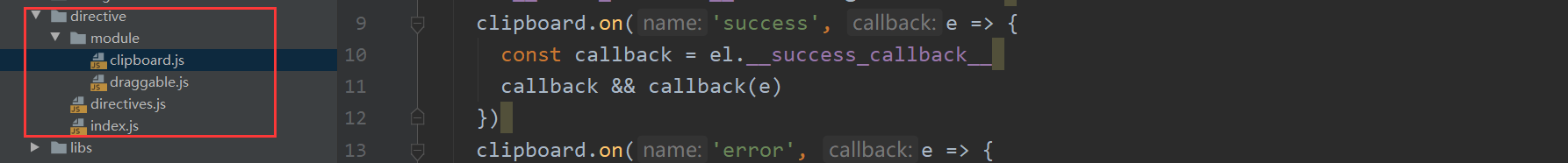

在项目目录下 -> src -> directive文件夹中引入如下4个js文件

clipboard.js

import Clipboard from ’clipboard’export default { bind: (el, binding) => { const clipboard = new Clipboard(el, { text: () => binding.value.value }) el.__success_callback__ = binding.value.success el.__error_callback__ = binding.value.error clipboard.on(’success’, e => { const callback = el.__success_callback__ callback && callback(e) }) clipboard.on(’error’, e => { const callback = el.__error_callback__ callback && callback(e) }) el.__clipboard__ = clipboard }, update: (el, binding) => { el.__clipboard__.text = () => binding.value.value el.__success_callback__ = binding.value.success el.__error_callback__ = binding.value.error }, unbind: (el, binding) => { delete el.__success_callback__ delete el.__error_callback__ el.__clipboard__.destroy() delete el.__clipboard__ }}

draggable.js

import { on } from ’@/libs/tools’export default { inserted: (el, binding, vnode) => { const triggerDom = document.querySelector(binding.value.trigger) triggerDom.style.cursor = ’move’ const bodyDom = document.querySelector(binding.value.body) let pageX = 0 let pageY = 0 let transformX = 0 let transformY = 0 let canMove = false const handleMousedown = e => { let transform = /(.*)/.exec(bodyDom.style.transform) if (transform) {transform = transform[0].slice(1, transform[0].length - 1)const splitxy = transform.split(’px, ’)transformX = parseFloat(splitxy[0])transformY = parseFloat(splitxy[1].split(’px’)[0]) } pageX = e.pageX pageY = e.pageY canMove = true } const handleMousemove = e => { const xOffset = e.pageX - pageX + transformX const yOffset = e.pageY - pageY + transformY if (canMove) bodyDom.style.transform = `translate(${xOffset}px, ${yOffset}px)` } const handleMouseup = e => { canMove = false } on(triggerDom, ’mousedown’, handleMousedown) on(document, ’mousemove’, handleMousemove) on(document, ’mouseup’, handleMouseup) }, update: (el, binding, vnode) => { if (!binding.value.recover) return const bodyDom = document.querySelector(binding.value.body) bodyDom.style.transform = ’’ }}

directives.js

import draggable from ’./module/draggable’import clipboard from ’./module/clipboard’ const directives = { draggable, clipboard} export default directives

index.js

import directive from ’./directives’ const importDirective = Vue => { /** * 拖拽指令 v-draggable='options' * options = { * trigger: /这里传入作为拖拽触发器的CSS选择器/, * body: /这里传入需要移动容器的CSS选择器/, * recover: /拖动结束之后是否恢复到原来的位置/ * } */ Vue.directive(’draggable’, directive.draggable) /** * clipboard指令 v-draggable='options' * options = { * value: /在输入框中使用v-model绑定的值/, * success: /复制成功后的回调/, * error: /复制失败后的回调/ * } */ Vue.directive(’clipboard’, directive.clipboard)} export default importDirective

（4）正式使用v-org-tree组件

在所要使用的地方新增如下几个文件，比如我要写在user-group文件夹中

项目srccomponentsorg-view下面建立二个文件:

index.js

import OrgView from ’./org-view.vue’export default OrgView

org-view.vue

<template> <div ref='dragWrapper' @mousedown='mousedownView' @contextmenu='handleDocumentContextmenu' > <div :style='orgTreeStyle'> <v-org-treev-if='data':data='data':node-render='nodeRender':expand-all='true'@on-node-click='handleNodeClick'collapsable ></v-org-tree> </div> </div></template> <script>import { on, off } from ’@/directive/module/tools’ export default { name: ’OrgView’, props: { zoomHandled: { type: Number, default: 1 }, data: Object, menuList: { type: Array, default: function () {return [ { key: ’edit’, label: ’编辑公司’ }, { key: ’detail’, label: ’查看公司’ }, { key: ’add’, label: ’新增子公司’ }, { key: ’delete’, label: ’删除公司’ }] } } }, data () { return { currentContextMenuId: ’’, orgTreeOffsetLeft: 0, orgTreeOffsetTop: 0, initPageX: 0, initPageY: 0, oldMarginLeft: 0, oldMarginTop: 0, canMove: false } }, computed: { orgTreeStyle () { return {transform: `translate(-50%, -50%) scale(${this.zoomHandled}, ${ this.zoomHandled})`,marginLeft: `${this.orgTreeOffsetLeft}px`,marginTop: `${this.orgTreeOffsetTop}px` } } }, methods: { handleNodeClick (e, data, expand) { expand() }, closeMenu () { this.currentContextMenuId = ’’ }, getBgColor (data) { return this.currentContextMenuId === data.id? data.isRoot ? ’#0d7fe8’ : ’#5d6c7b’: ’’ }, nodeRender (h, data) { return (<div class={[ ’custom-org-node’, data.children && data.children.length ? ’has-children-label’ : ’’ ]} on-mousedown={event => event.stopPropagation()} on-contextmenu={this.contextmenu.bind(this, data)}> {data.label} <dropdown trigger='custom' visible={this.currentContextMenuId === data.id} nativeOn-click={this.handleDropdownClick} on-on-click={this.handleContextMenuClick.bind(this, data)} style={{ transform: `scale(${1 / this.zoomHandled}, ${1 /this.zoomHandled})` }} v-click-outside={this.closeMenu} > <dropdown-menu slot='list'> {this.menuList.map(item => {return ( <dropdown-item name={item.key}>{item.label}</dropdown-item>) })} </dropdown-menu> </dropdown></div> ) }, contextmenu (data, $event) { const event = $event || window.event event.preventDefault? event.preventDefault(): (event.returnValue = false) this.currentContextMenuId = data.id }, setDepartmentData (data) { data.isRoot = true this.departmentData = data }, mousedownView (event) { this.canMove = true this.initPageX = event.pageX this.initPageY = event.pageY this.oldMarginLeft = this.orgTreeOffsetLeft this.oldMarginTop = this.orgTreeOffsetTop on(document, ’mousemove’, this.mousemoveView) on(document, ’mouseup’, this.mouseupView) }, mousemoveView (event) { if (!this.canMove) return const { pageX, pageY } = event this.orgTreeOffsetLeft = this.oldMarginLeft + pageX - this.initPageX this.orgTreeOffsetTop = this.oldMarginTop + pageY - this.initPageY }, mouseupView () { this.canMove = false off(document, ’mousemove’, this.mousemoveView) off(document, ’mouseup’, this.mouseupView) }, handleDropdownClick (event) { event.stopPropagation() }, handleDocumentContextmenu () { this.canMove = false }, handleContextMenuClick (data, key) { this.$emit(’on-menu-click’, { data, key }) } }, mounted () { on(document, ’contextmenu’, this.handleDocumentContextmenu) }, beforeDestroy () { off(document, ’contextmenu’, this.handleDocumentContextmenu) }}</script> <style></style>

项目srccomponentszoom-controller下面建立二个文件:

index.js

import ZoomController from ’./zoom-controller’export default ZoomController

zoom-controller.vue

<template> <div class='zoom-wrapper'> <button @click='scale(’down’)'> <Icon type='md-remove' :size='14' color='#fff'/> </button> <span class='zoom-number'>{{ value }}%</span> <button @click='scale(’up’)'> <Icon type='md-add' :size='14' color='#fff'/> </button> </div></template> <script>export default { name: ’ZoomController’, props: { value: { type: Number, default: 100 }, step: { type: Number, default: 20 }, min: { type: Number, default: 10 }, max: { type: Number, default: 200 } }, methods: { scale (type) { const zoom = this.value + (type === ’down’ ? -this.step : this.step) if ((zoom < this.min && type === ’down’) ||(zoom > this.max && type === ’up’) ) {return } this.$emit(’input’, zoom) } }}</script> <style lang='less'>.trans(@duration) { transition: ~'all @{duration} ease-in';}.zoom-wrapper { .zoom-button { width: 20px; height: 20px; line-height: 10px; border-radius: 50%; background: rgba(157, 162, 172, 1); box-shadow: 0px 2px 8px 0px rgba(218, 220, 223, 0.7); border: none; cursor: pointer; outline: none; &:active { box-shadow: 0px 0px 2px 2px rgba(218, 220, 223, 0.2) inset; } .trans(0.1s); &:hover { background: #1890ff; .trans(0.1s); } } .zoom-number { color: #657180; padding: 0 8px; display: inline-block; width: 46px; text-align: center; }}</style>

项目srcview下面建立org.vue文件

<template> <Card shadow style='height: 100%;width: 100%;overflow:hidden'> <div class='department-outer'> <div class='zoom-box'><zoom-controller v-model='zoom' :min='20' :max='200'></zoom-controller> </div> <div class='view-box'><org-view v-if='data' :data='data' :zoom-handled='zoomHandled' :menuList='menuList' @on-menu-click='handleMenuClick'></org-view> </div> </div> </Card></template> <script>import { orgList } from ’@/api/org’import { layerDialog } from ’@/libs/Diaglog’import ’./org.less’ const OrgView = Vue.component(’OrgView’, function (resolve) { require([’/user/org-view’], resolve)})const ZoomController = Vue.component(’ZoomController’, function (resolve) { require([’/user/zoom-controller’], resolve)})export default { name: ’org_tree_page’, components: { OrgView, ZoomController }, data () { return { data: null, zoom: 100, menuList: [{ key: ’add’, label: ’新增子公司’},{ key: ’edit’, label: ’编辑公司’},{ key: ’delete’, label: ’删除公司’} ] } }, computed: { zoomHandled () { return this.zoom / 100 } }, methods: { setDepartmentData (data) { data.isRoot = true return data }, handleMenuClick ({ data, key }) { switch (key) {case ’add’:case ’edit’: console.log(data) this.showDialog(data, key) breakcase ’delete’: break } }, showDialog (data, key) { data.key = key const option = {id: key + ’SaveDialog’,title: this.$i18n.t(key),width: ’600px’,height: ’550px’,url: ’/api/org/’ + Qs.stringify(data, { arrayFormat: ’brackets’ }) } layerDialog(option) }, getDepartmentData () { const entity = {} const levels = ’0,1,2,3,4,5,6’ entity.status = 1 getOrgList(entity, 1, 20, levels).then(result => {if (result.data.code === 10000) { let len = 0 const list = result.data.data.list if (list) { len = list.length } var data = { id: 0, label: ’阿里巴巴集团’, level: 0 } if (len > 0) { data.children = this.formatData(list, 1, 0) } this.data = data} }) }, formatData (list, level, pid, pname) { const childrenData = [] for (let i = 0; i < list.length; i++) {const data = {}const item = list[i]if (level === item.level) { data.id = item.id data.label = item.name data.parentName = pname data.level = item.level data.children = this.formatData(list, level + 1, item.id, item.name) childrenData.push(data)} } return childrenData } }, mounted () { this.getDepartmentData() }}</script>

接口中核心代码：

List<Station> stations = stationService.listByEntity(station,levelList);List<StationVo> stationVos = new ArrayList();for(Station s : stations) { StationVo vo = new StationVo(); vo.setId(s.getId()); vo.setLevel(s.getLevel()); vo.setName(s.getName()); stationVos.add(vo);}

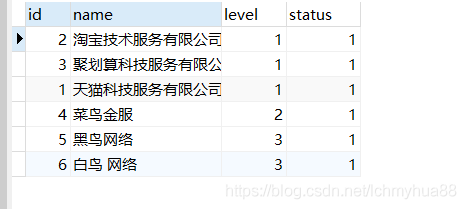

数据库中四个字段

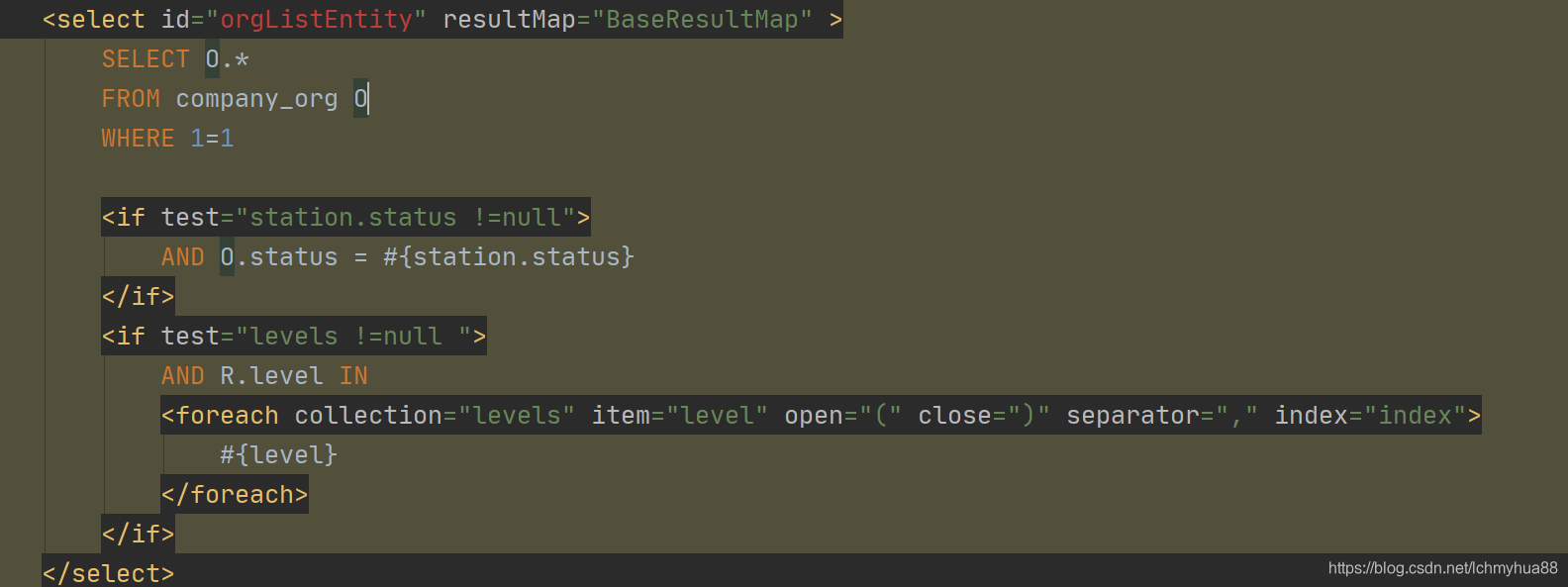

mybatis 配置：

返回的json如下：

{ 'data' : { 'page' : 1, 'pageSize' : 20, 'total' : 6, 'pages' : 1, 'list' : [ { 'id' : 1, 'name' : '天猫科技服务有限公司', 'level' : 1, 'status' : 1, }, { 'id' : 2, 'name' : '淘宝技术服务有限公司', 'level' : 1, 'status' : 1, }, { 'id' : 3, 'name' : '聚划算科技服务有限公司', 'level' : 1, 'status' : 1, }, { 'id' : 4, 'name' : '菜鸟金服', 'level' : 2, 'status' : 1, }, { 'id' : 5, 'name' : '黑鸟网络', 'level' : 3, 'status' : 1, }, { 'id' : 6, 'name' : '白鸟 网络', 'level' : 3, 'status' : 1, } ] }, 'message' : '获取成功', 'code' : 200}
