使用java + selenium + OpenCV破解腾讯防水墙滑动验证码功能

* 验证码地址：https://007.qq.com/online.html* 使用OpenCv模板匹配* 成功率90%左右* Java + Selenium + OpenCV

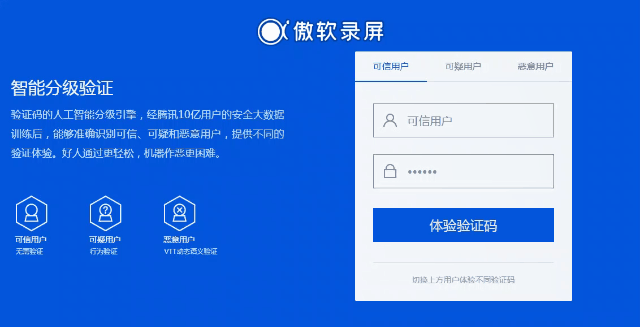

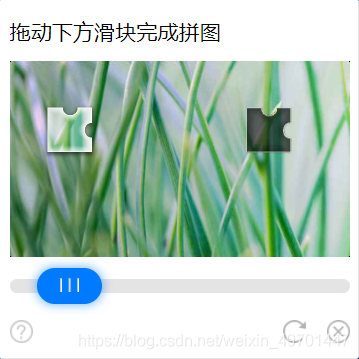

产品样例

来吧！展示！

注意！！！· 在模拟滑动时不能按照相同速度或者过快的速度滑动，需要向人滑动时一样先快后慢，这样才不容易被识别。模拟滑动代码↓↓↓

/** * 模拟人工移动 * @param driver * @param element页面滑块 * @param distance需要移动距离 */public static void move(WebDriver driver, WebElement element, int distance) throws InterruptedException {int randomTime = 0;if (distance > 90) {randomTime = 250;} else if (distance > 80 && distance <= 90) {randomTime = 150;}List<Integer> track = getMoveTrack(distance - 2);int moveY = 1;try {Actions actions = new Actions(driver);actions.clickAndHold(element).perform();Thread.sleep(200);for (int i = 0; i < track.size(); i++) {actions.moveByOffset(track.get(i), moveY).perform();Thread.sleep(new Random().nextInt(300) + randomTime);}Thread.sleep(200);actions.release(element).perform();} catch (Exception e) {e.printStackTrace();}}/** * 根据距离获取滑动轨迹 * @param distance需要移动的距离 * @return */public static List<Integer> getMoveTrack(int distance) {List<Integer> track = new ArrayList<>();// 移动轨迹Random random = new Random();int current = 0;// 已经移动的距离int mid = (int) distance * 4 / 5;// 减速阈值int a = 0;int move = 0;// 每次循环移动的距离while (true) {a = random.nextInt(10);if (current <= mid) {move += a;// 不断加速} else {move -= a;}if ((current + move) < distance) {track.add(move);} else {track.add(distance - current);break;}current += move;}return track;}

看操作，no bb，直接上代码

private final String INDEX_URL = 'https://007.qq.com/online.html?ADTAG=index.head';private void seleniumTest() {ChromeDriverManager manager = ChromeDriverManager.getInstance();int status = -1;try {WebDriver driver = manager.getDriver();driver.get(INDEX_URL);driver.manage().window().maximize(); // 设置浏览器窗口最大化Thread.sleep(10000);driver.findElement(By.className('wp-onb-tit')).findElements(By.tagName('a')).get(1).click();Thread.sleep(500);// 点击出现滑动图waitWebElement(driver, By.id('code'), 500).click();Thread.sleep(100);// 获取到验证区域driver.switchTo().frame(waitWebElement(driver, By.id('tcaptcha_iframe'), 500));Thread.sleep(100);// 获取滑动按钮WebElement moveElemet = waitWebElement(driver, By.id('tcaptcha_drag_button'), 500);Thread.sleep(100);// 获取带阴影的背景图String bgUrl = waitWebElement(driver, By.id('slideBg'), 500).getAttribute('src');Thread.sleep(100);// 获取带阴影的小图String sUrl = waitWebElement(driver, By.id('slideBlock'), 500).getAttribute('src');Thread.sleep(100);// 获取高度String topStr = waitWebElement(driver, By.id('slideBlock'), 500).getAttribute('style').substring(32, 36);int top = Integer.parseInt(topStr.substring(0, topStr.indexOf('p'))) * 2;Thread.sleep(100);// 计算移动距离int distance = (int) Double.parseDouble(getTencentDistance(bgUrl, sUrl, top));// 滑动move(driver, moveElemet, distance);Thread.sleep(5000);} catch (Exception e) {e.printStackTrace();} finally {manager.closeDriver(status);}}/** * 获取腾讯验证滑动距离 * * @return */public static String dllPath = 'C://chrome//opencv_java440.dll';public String getTencentDistance(String bUrl, String sUrl, int top) {System.load(dllPath);File bFile = new File('C:/qq_b.jpg');File sFile = new File('C:/qq_s.jpg');try {FileUtils.copyURLToFile(new URL(bUrl), bFile);FileUtils.copyURLToFile(new URL(sUrl), sFile);BufferedImage bgBI = ImageIO.read(bFile);BufferedImage sBI = ImageIO.read(sFile);// 裁剪bgBI = bgBI.getSubimage(360, top, bgBI.getWidth() - 370, sBI.getHeight());ImageIO.write(bgBI, 'png', bFile);Mat s_mat = Imgcodecs.imread(sFile.getPath());Mat b_mat = Imgcodecs.imread(bFile.getPath());// 转灰度图像Mat s_newMat = new Mat();Imgproc.cvtColor(s_mat, s_newMat, Imgproc.COLOR_BGR2GRAY);// 二值化图像binaryzation(s_newMat);Imgcodecs.imwrite(sFile.getPath(), s_newMat);int result_rows = b_mat.rows() - s_mat.rows() + 1;int result_cols = b_mat.cols() - s_mat.cols() + 1;Mat g_result = new Mat(result_rows, result_cols, CvType.CV_32FC1);Imgproc.matchTemplate(b_mat, s_mat, g_result, Imgproc.TM_SQDIFF); // 归一化平方差匹配法// 归一化相关匹配法Core.normalize(g_result, g_result, 0, 1, Core.NORM_MINMAX, -1, new Mat());Point matchLocation = new Point();MinMaxLocResult mmlr = Core.minMaxLoc(g_result);matchLocation = mmlr.maxLoc; // 此处使用maxLoc还是minLoc取决于使用的匹配算法Imgproc.rectangle(b_mat, matchLocation,new Point(matchLocation.x + s_mat.cols(), matchLocation.y + s_mat.rows()), new Scalar(0, 0, 0, 0));return '' + ((matchLocation.x + s_mat.cols() + 360 - sBI.getWidth() - 46) / 2);} catch (Throwable e) {e.printStackTrace();return null;} finally {bFile.delete();sFile.delete();}}/** * * @param mat * 二值化图像 */public static void binaryzation(Mat mat) {int BLACK = 0;int WHITE = 255;int ucThre = 0, ucThre_new = 127;int nBack_count, nData_count;int nBack_sum, nData_sum;int nValue;int i, j;int width = mat.width(), height = mat.height();// 寻找最佳的阙值while (ucThre != ucThre_new) {nBack_sum = nData_sum = 0;nBack_count = nData_count = 0;for (j = 0; j < height; ++j) {for (i = 0; i < width; i++) {nValue = (int) mat.get(j, i)[0];if (nValue > ucThre_new) {nBack_sum += nValue;nBack_count++;} else {nData_sum += nValue;nData_count++;}}}nBack_sum = nBack_sum / nBack_count;nData_sum = nData_sum / nData_count;ucThre = ucThre_new;ucThre_new = (nBack_sum + nData_sum) / 2;}// 二值化处理int nBlack = 0;int nWhite = 0;for (j = 0; j < height; ++j) {for (i = 0; i < width; ++i) {nValue = (int) mat.get(j, i)[0];if (nValue > ucThre_new) {mat.put(j, i, WHITE);nWhite++;} else {mat.put(j, i, BLACK);nBlack++;}}}// 确保白底黑字if (nBlack > nWhite) {for (j = 0; j < height; ++j) {for (i = 0; i < width; ++i) {nValue = (int) (mat.get(j, i)[0]);if (nValue == 0) {mat.put(j, i, WHITE);} else {mat.put(j, i, BLACK);}}}}}// 延时加载private static WebElement waitWebElement(WebDriver driver, By by, int count) throws Exception {WebElement webElement = null;boolean isWait = false;for (int k = 0; k < count; k++) {try {webElement = driver.findElement(by);if (isWait)System.out.println(' ok!');return webElement;} catch (org.openqa.selenium.NoSuchElementException ex) {isWait = true;if (k == 0)System.out.print('waitWebElement(' + by.toString() + ')');elseSystem.out.print('.');Thread.sleep(50);}}if (isWait)System.out.println(' outTime!');return null;}

到此这篇关于使用java + selenium + OpenCV破解腾讯防水墙滑动验证码的文章就介绍到这了,更多相关java selenium 滑动验证码内容请搜索好吧啦网以前的文章或继续浏览下面的相关文章希望大家以后多多支持好吧啦网！
